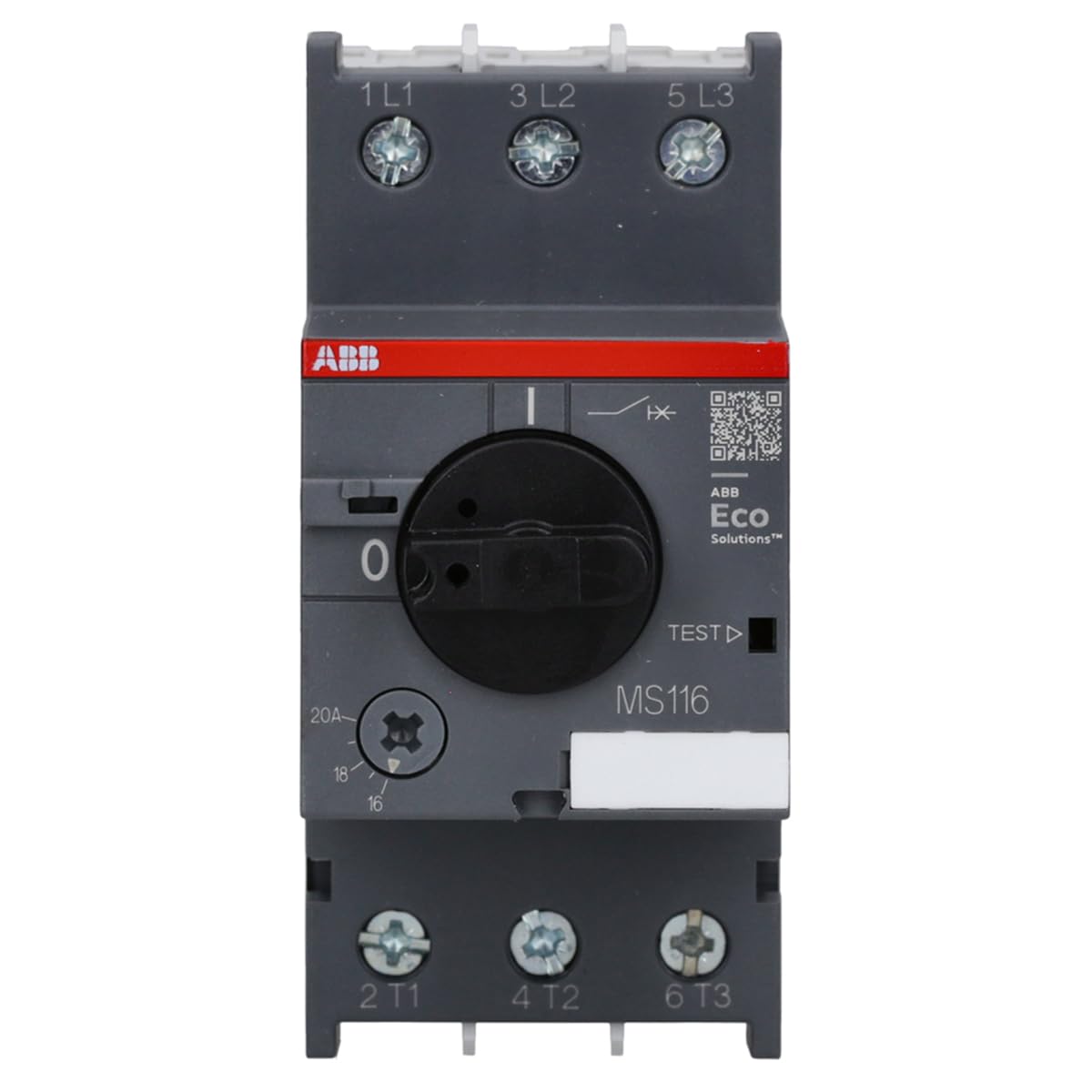

Abb -interlacec ms116-20 - Motor Guard Range ms116 up to 20a

The MS116-20 manual motor starter (also known as motor protection circuit breaker or manual motor guard) is a compact 45mm wide device with a rated operating current of Ie = 20.0A. This device is used to manually turn motors on and off and to reliably protect them without the need for a fuse from short circuits, overloads and phase failures. Manual motor starter offers rated short circuit cutting capacity of service Ics = 10 kA at 400 VAC and firing class 10A. Other features are the built-in disconnect function, temperature compensation, free firing mechanism and a rotating handle with a clear indication of switch position. The manual motor starter is suitable for three-phase and single-phase applications. Auxiliary contacts, signalling contacts, minimum voltage triggers, bypass shots, three-phase busbars. Power supply blocks and locking devices for protection against unauthorized changes are available as accessories.

• ABB Motor Guard Ms116-20
• Brand Engine Starter ABB
• Manufacturer reference: 1SAM250000R1013
• 8.7 x 4.5 x 10 cm
• The ABB Group is a Swiss multinational technology corporation based in Zurich, specializing in robotics, electric power generation, automation, industrial equipment and other engineering technologies. ABB operates in more than 100 countries and employs more than 149,000 people.
